REFFLEX®  DN-5.0 crimp fittings

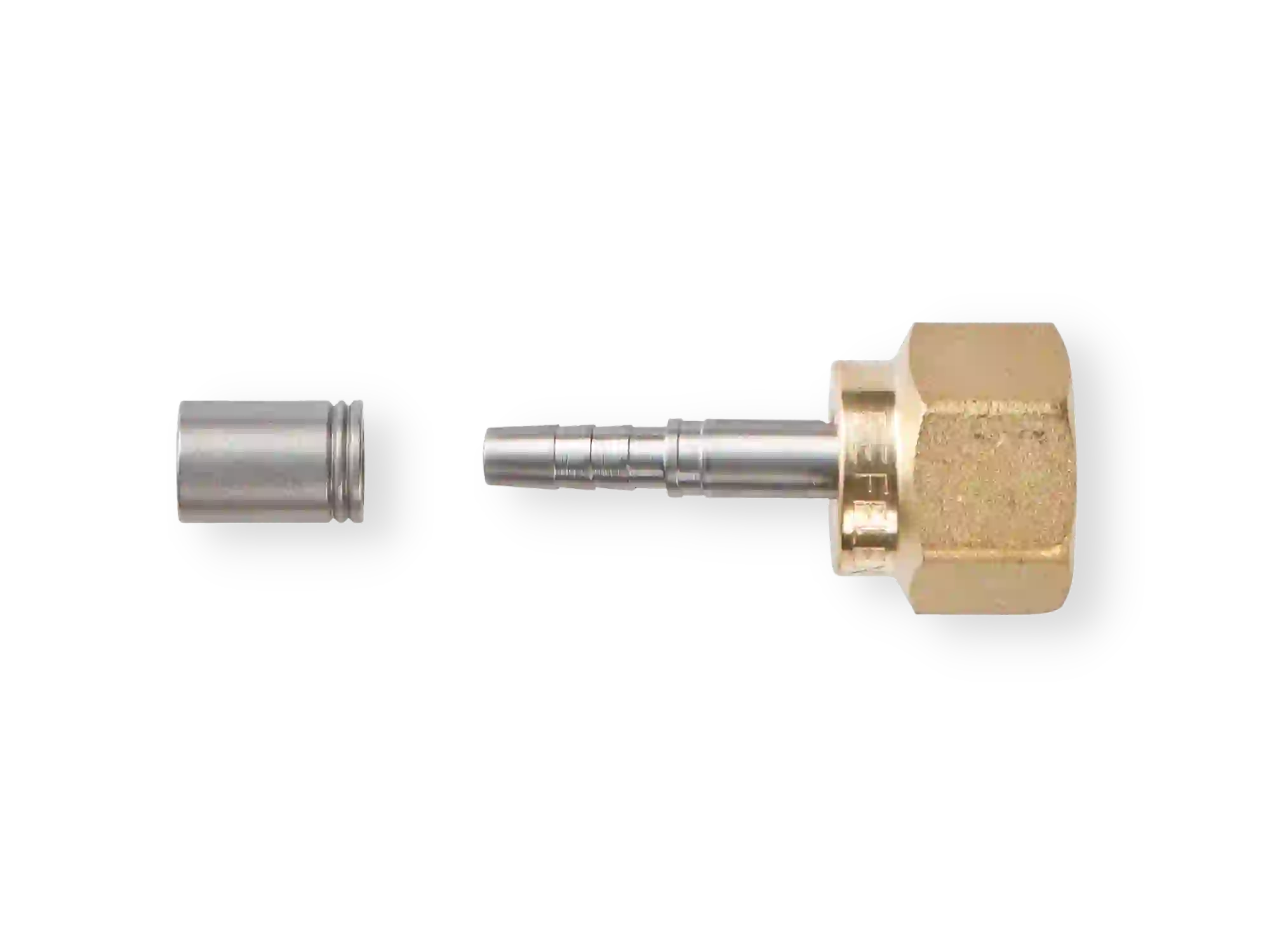

200645 | REFFLEX DN-5.0 303 straight 1/4"
Article 200645
200645: crimp fitting straight 1/4″
303 stainless steel crimping sleeve
303 stainless straight steel fitting
7/16" UNF hot-forged brass nut
ISO9223: C5
Packed per 100 pieces
200646 | REFFLEX DN-5.0 303 angle 1/4"
Article 200646
200646: crimp fitting 90° angle 1/4″
303 stainless steel crimping sleeve
303 stainless straight steel fitting
7/16" UNF hot-forged brass nut
ISO9223: C5
Packed per 100 pieces
200678 | REFFLEX DN-5.0 straight 3/8"
Article 200678
200678: crimp fitting straight 3/8″
303 stainless steel crimp sleeve
430F straight stainless steel fitting
5/8" UNF hot-forged brass nut
ISO9223: C3
Packed per 100 pieces
200679 | REFFLEX DN-5.0 angle 3/8"
Article 200679
200679: crimp fitting 90° angle 3/8″
303 stainless steel crimp sleeve
430F straight stainless steel fitting
5/8" UNF hot-forged brass nut
ISO9223: C3
Packed per 100 pieces

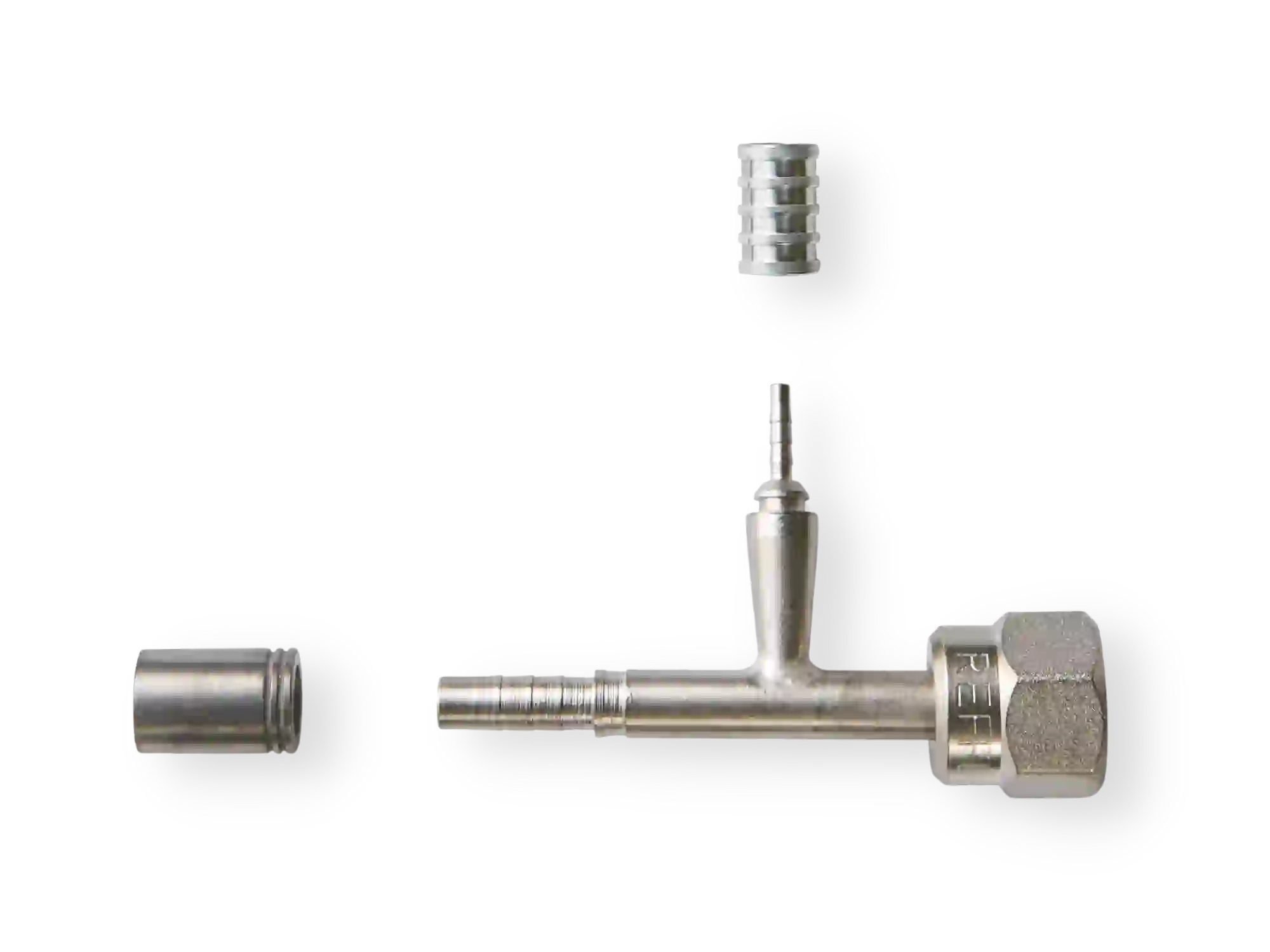

200647 | REFFLEX DN-5.0 T-connection with DN-2.0 hose connection and 1/4″
Article 200647
200647: T-connection with DN-2.0 hose connection and 1/4″
DN-5.0 303 stainless steel crimp sleeve
DN-2.0 aluminium crimping sleeve
stainless steel T-connection DN-2.0 and DN-5.0 hose connections
7/16" UNF hot-forged brass nut
Packed per 100 pieces
202715 | REFFLEX DN-5.0 straight fitting
Article 200845: Straight fitting for 6.0 mm Ermeto

DN-5.0 crimp fittings spare parts

Article number description Qty
202614 Schrader (access-) valve depressor for 1/4" fittings 100
101939 Spare brass nut 1/4" flare (7/16" UNF) 100
200126 Copper gasket 1/4" (B2-4) 100
102944 Spare brass nut 3/8" flare (5/8" UNF) 100
200131 Copper gasket 3/8" (B2-6) 100
200845 Straight fitting for 6.0 mm Ermeto on request
200846 90° angle fitting for 6.0 mm Ermeto on request
201725 Spare 303 stainless steel crimping sleeve 100

ISO9223 compliant

Our fittings have been tested and confirmed compliant with ISO9223 norm. ISO9223:2012 establishes a classification system for the corrosivity of atmospheric environments.

Our fittings have been rigorously tested by M2Lab, the Netherlands. Please find the result certificates herewith.
