REFFLEX® DN-5.0 crimp fittings
To assemble REFFLEX® DN-5.0 hoses, our crimping and pre-assembly tools are required. Please also see our detailed instructions.
Article 200645
| 200645: crimp fitting straight 1/4″ |
| 303 stainless steel crimping sleeve |
| 303 stainless straight steel fitting |
| 7/16" UNF hot-forged brass nut |
| ISO9223: C5 |
| Packed per 100 pieces |

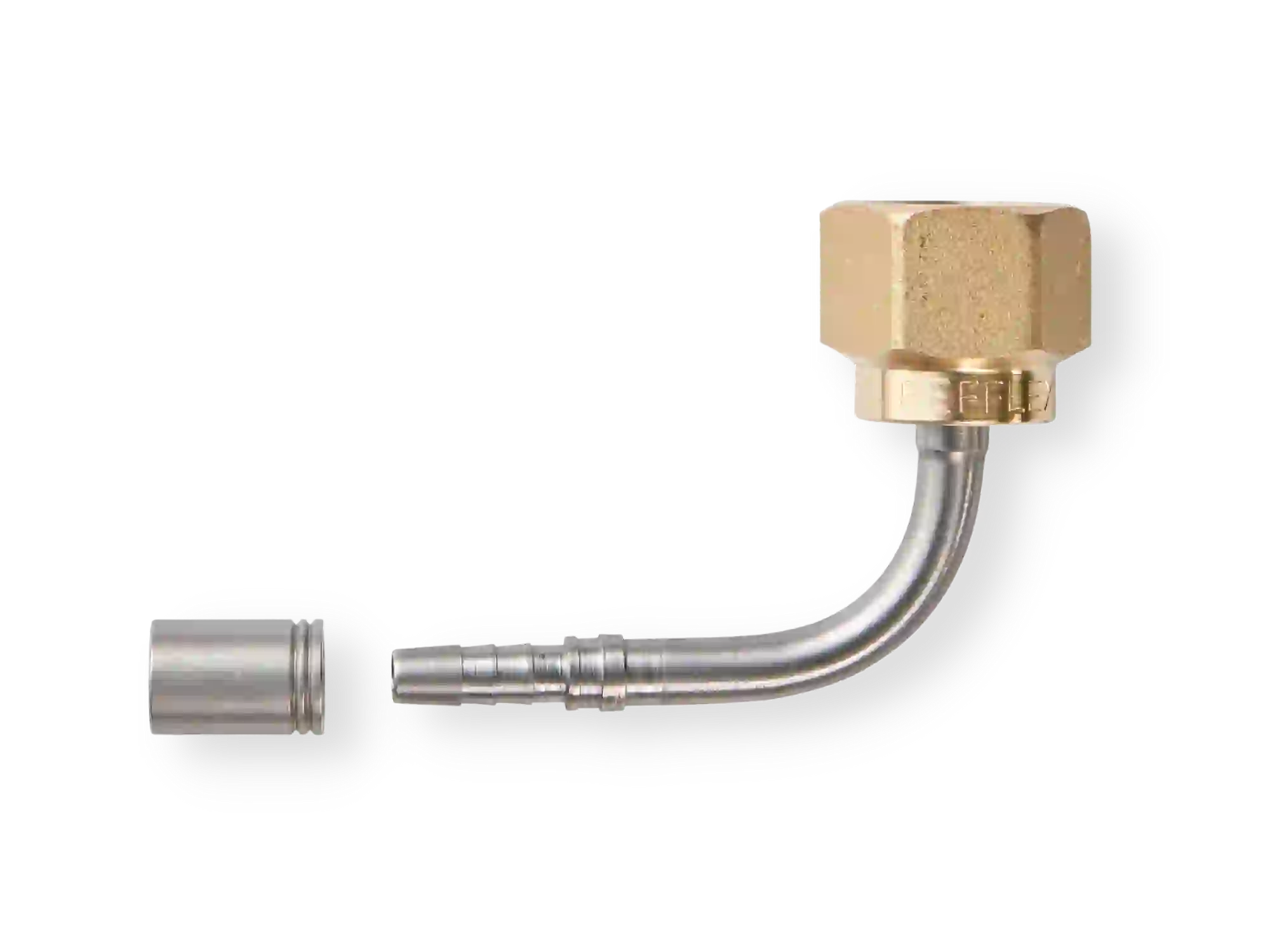

Article 200646
| 200646: crimp fitting 90° angle 1/4″ |
| 303 stainless steel crimping sleeve |
| 303 stainless straight steel fitting |
| 7/16" UNF hot-forged brass nut |
| ISO9223: C5 |
| Packed per 100 pieces |

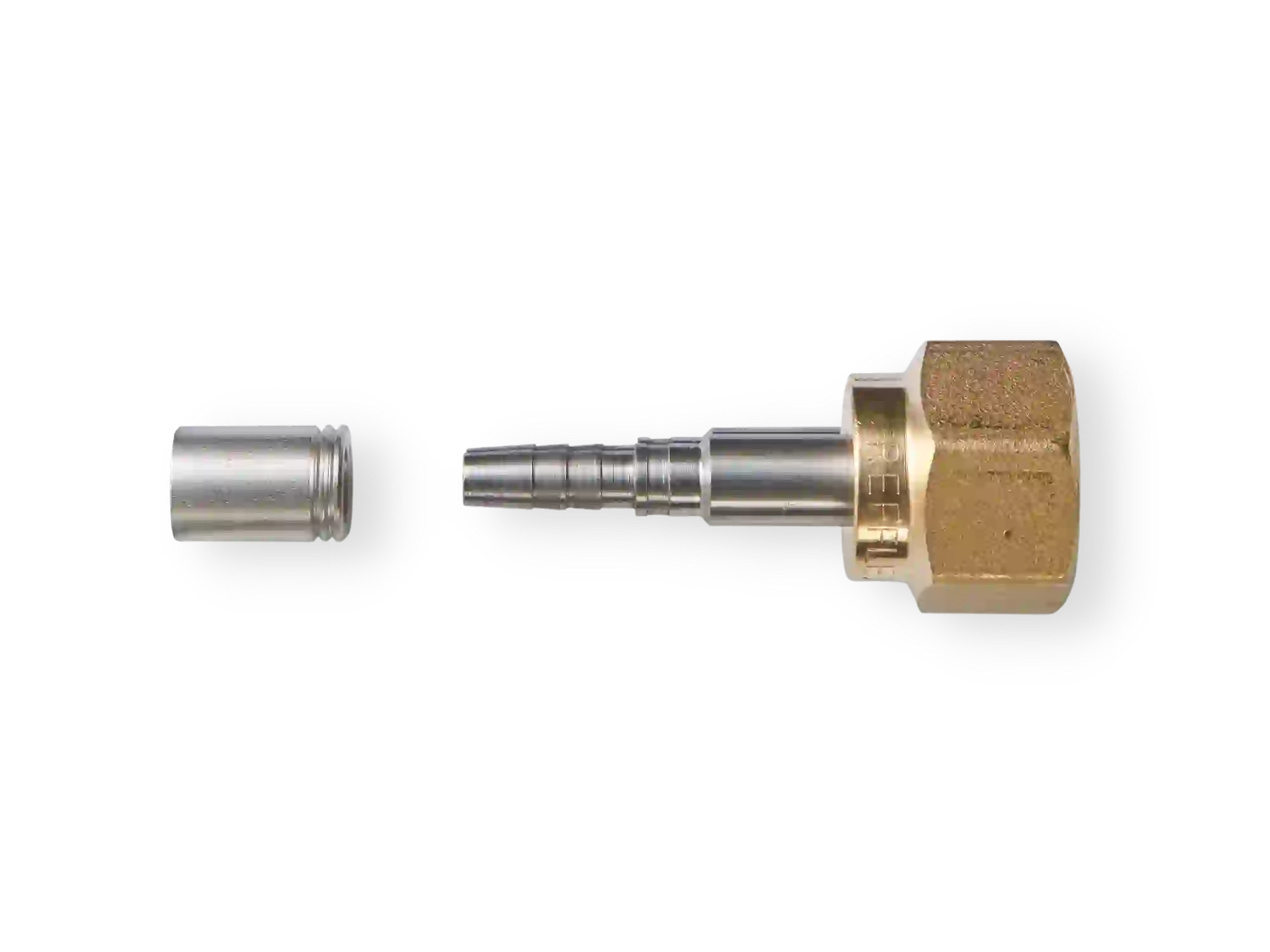

Article 200678
| 200678: crimp fitting straight 3/8″ |
| 303 stainless steel crimp sleeve |
| 430F straight stainless steel fitting |
| 5/8" UNF hot-forged brass nut |
| ISO9223: C3 |
| Packed per 100 pieces |

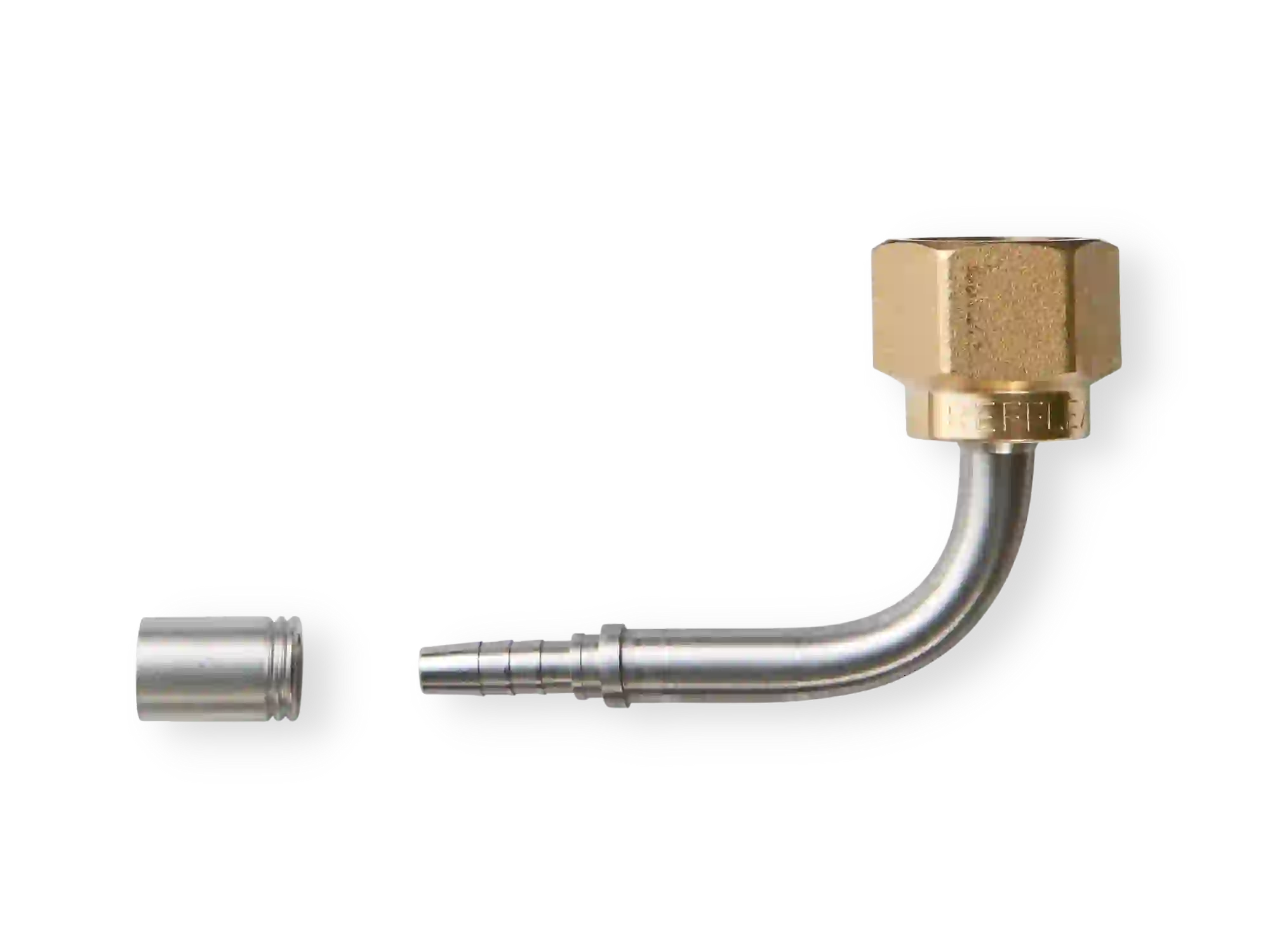

Article 200679
| 200679: crimp fitting 90° angle 3/8″ |
| 303 stainless steel crimp sleeve |
| 430F straight stainless steel fitting |
| 5/8" UNF hot-forged brass nut |
| ISO9223: C3 |
| Packed per 100 pieces |
Article 200647
| 200647: T-connection with DN-2.0 hose connection and 1/4″ |
| DN-5.0 303 stainless steel crimp sleeve |
| DN-2.0 aluminium crimping sleeve |
| stainless steel T-connection DN-2.0 and DN-5.0 hose connections |
| 7/16" UNF hot-forged brass nut |
| Packed per 100 pieces |

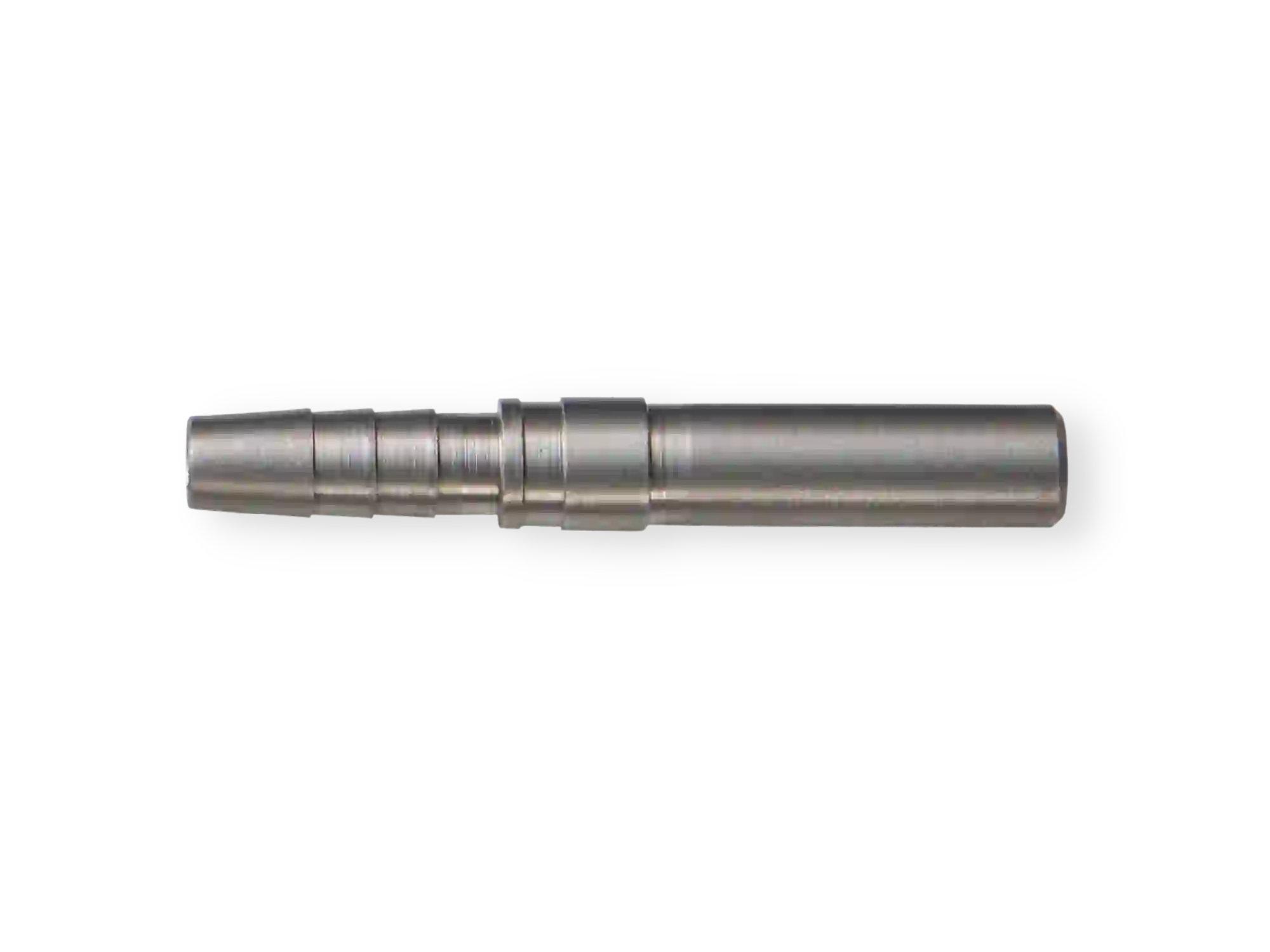

Article 200845: Straight fitting for 6.0 mm Ermeto
DN-5.0 crimp fittings spare parts
| Article number | description | Qty |
| 202614 | Schrader (access-) valve depressor for 1/4" fittings | 100 |
| 101939 | Spare brass nut 1/4" flare (7/16" UNF) | 100 |
| 200126 | Copper gasket 1/4" (B2-4) | 100 |
| 102944 | Spare brass nut 3/8" flare (5/8" UNF) | 100 |
| 200131 | Copper gasket 3/8" (B2-6) | 100 |
| 200845 | Straight fitting for 6.0 mm Ermeto | on request |
| 200846 | 90° angle fitting for 6.0 mm Ermeto | on request |
| 201725 | Spare 303 stainless steel crimping sleeve | 100 |
ISO9223 compliant
Our fittings have been tested and confirmed compliant with ISO9223 norm. ISO9223:2012 establishes a classification system for the corrosivity of atmospheric environments.
Our fittings have been rigorously tested by M2Lab, the Netherlands. Please find the result certificates herewith.
