REFFLEX® DN-2.0 fittings
To assemble REFFLEX® DN-2.0 hoses, our crimping tools are required. Please also see our detailed instructions.

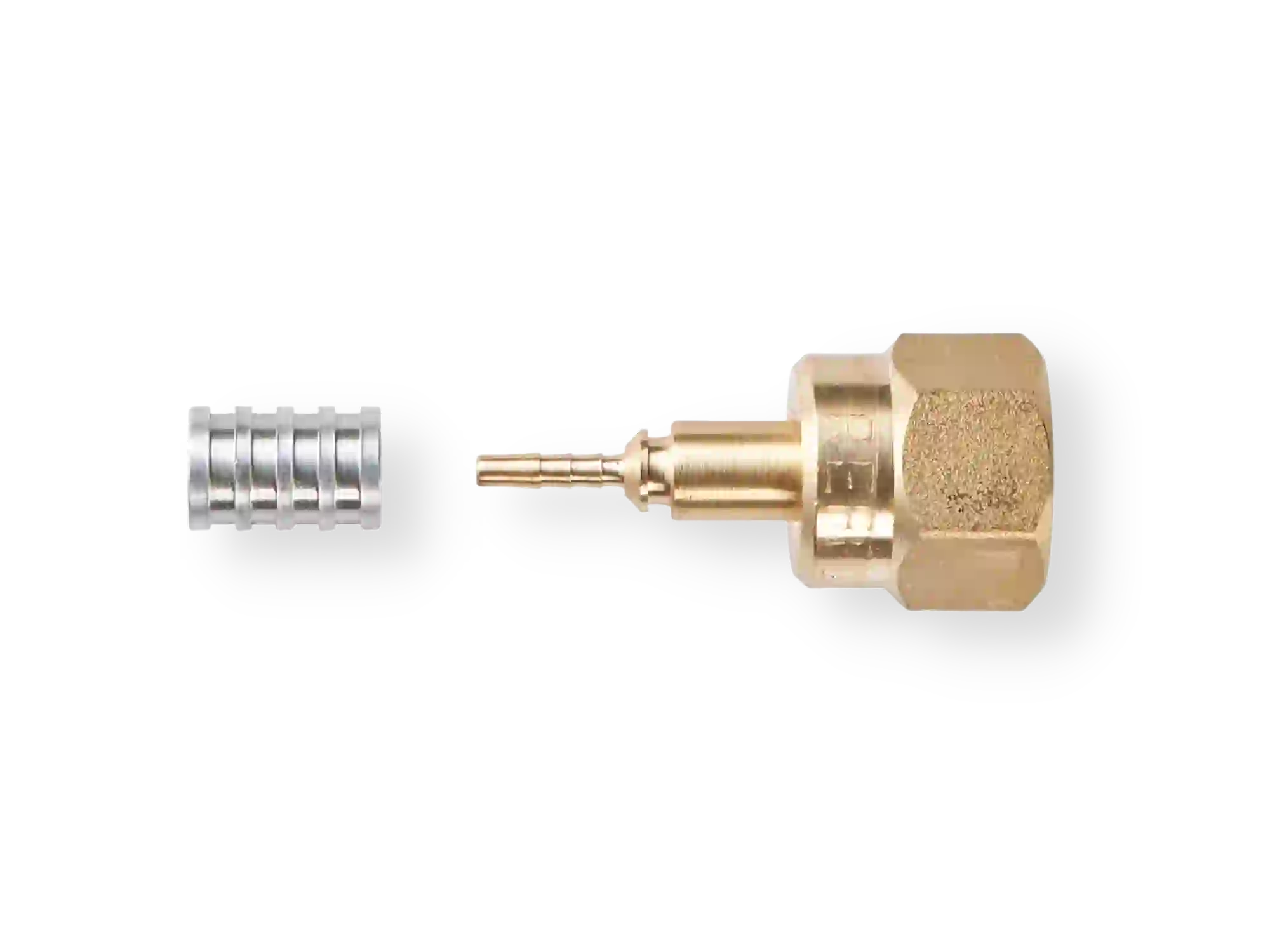

Article 200631
| 200631: brass-alu straight |
| Straight brass fitting |
| Aluminium crimping sleeve |
| 7/16″ UNF hot-forged brass nut |
| ISO9223: C3 |
| Packed per 50 pieces |

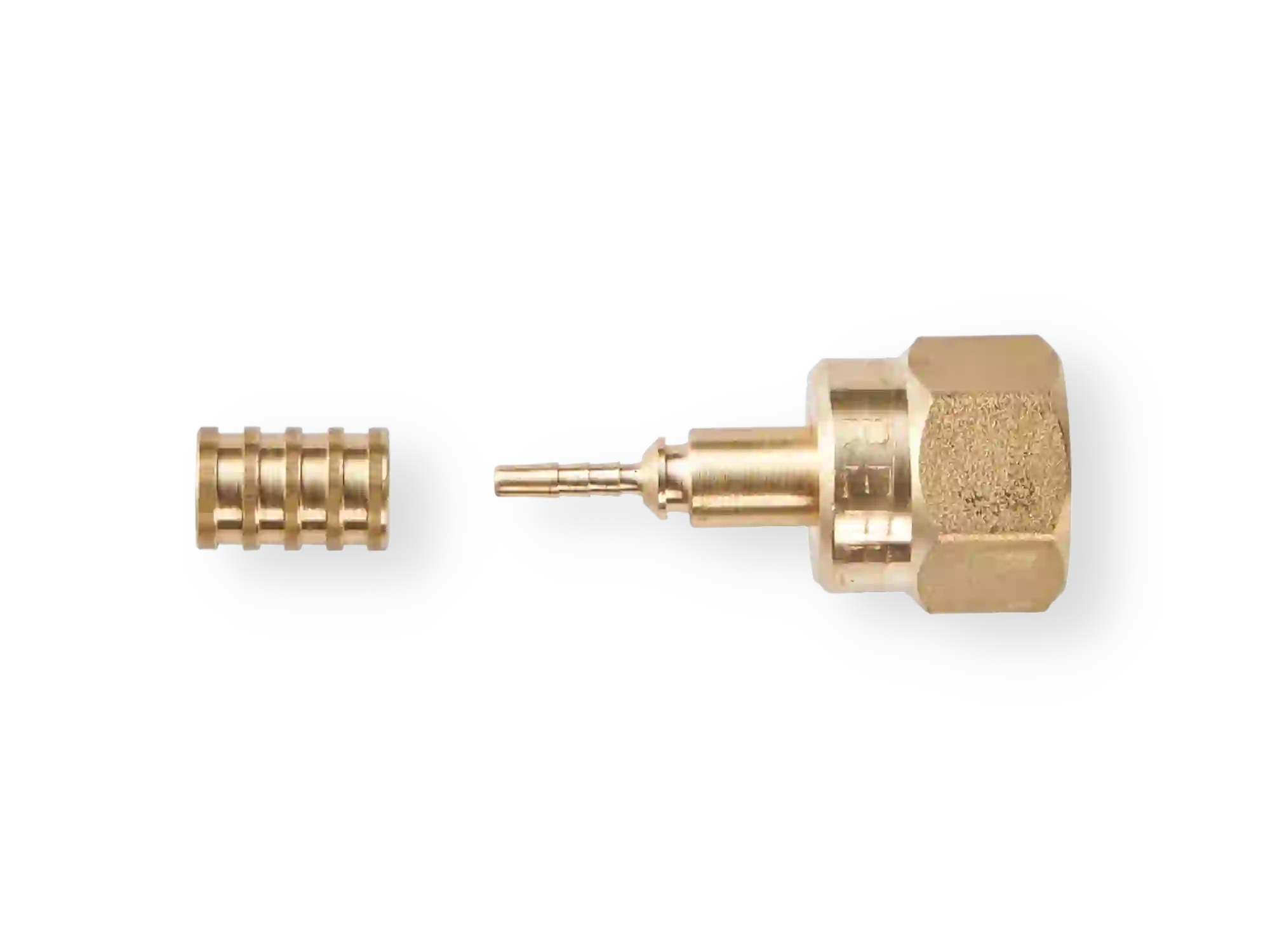

Article 203631
| 203631: full brass straight |
| Straight brass fitting |
| Brass crimping sleeve |
| 7/16″ UNF hot-forged brass nut |
| ISO9223: C5 |
| Packed per 50 pieces |

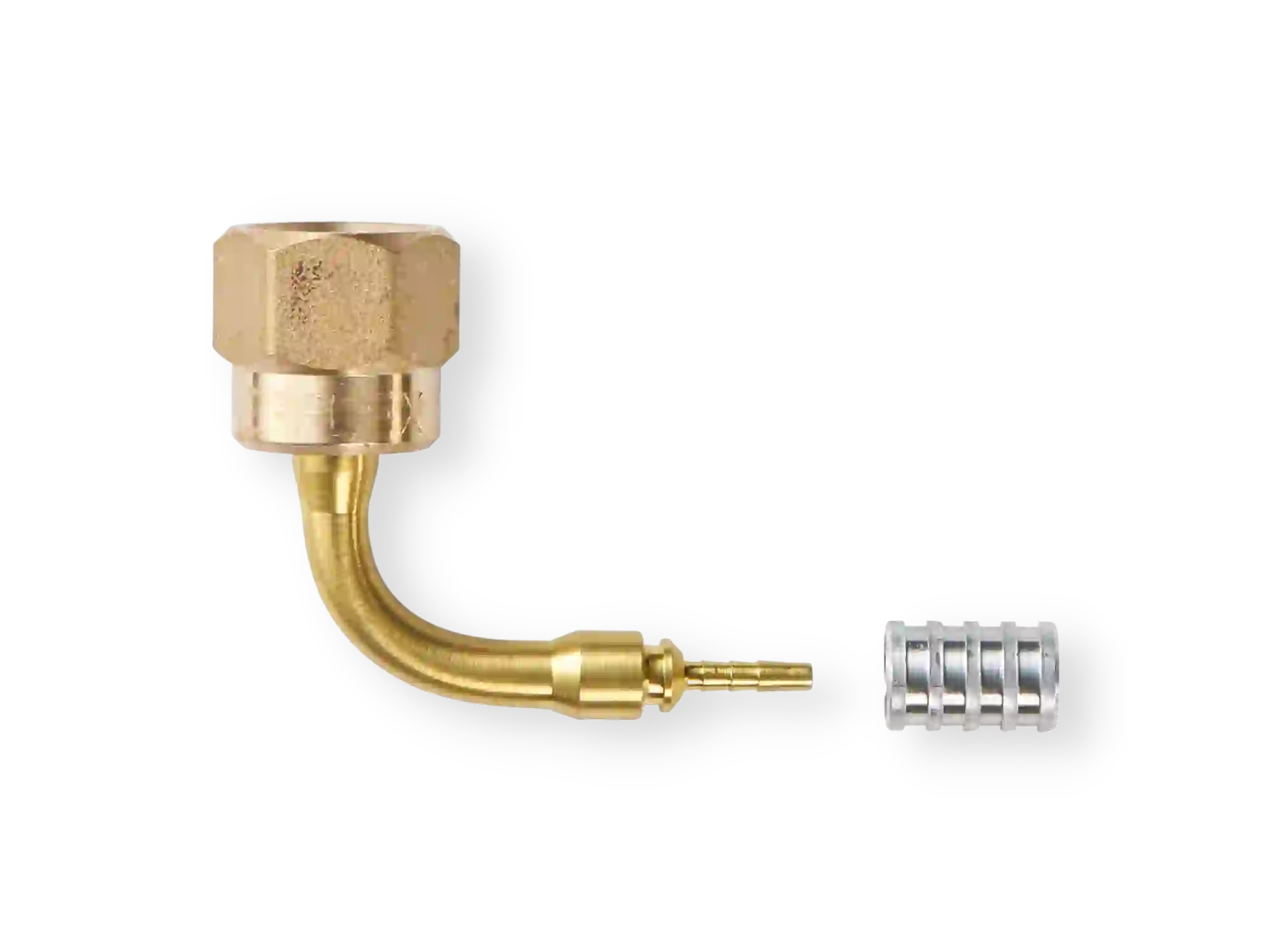

Article 200633
| 200633: brass-alu angle |
| 90° brass elbow fitting |
| Aluminium crimping sleeve |
| 7/16″ UNF hot-forged brass nut |
| ISO9223: C3 |
| Packed per 50 pieces |

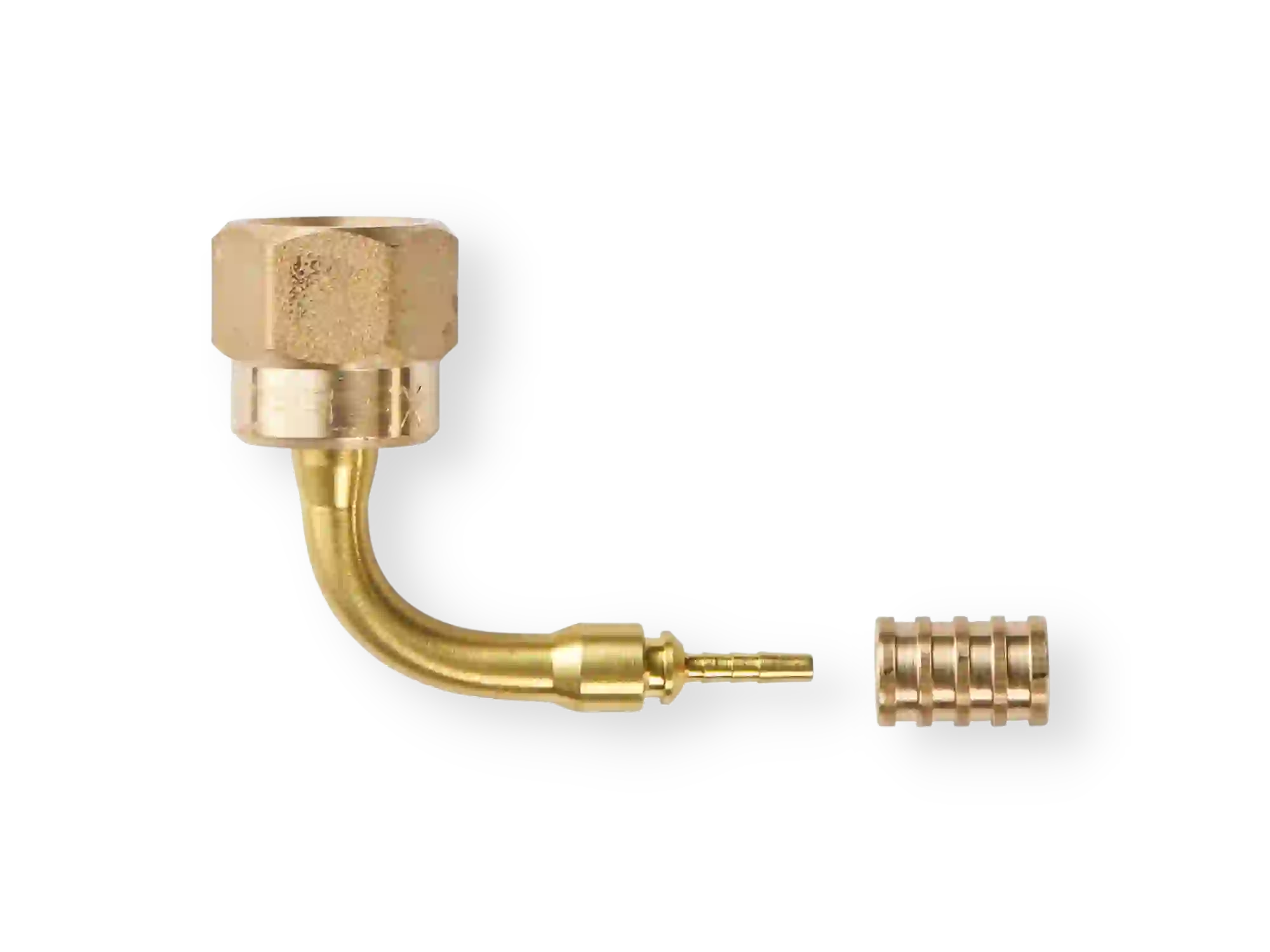

Article 203633
| 203633: full brass angle |
| 90° brass elbow fitting |
| Brass crimping sleeve |
| 7/16″ UNF hot-forged brass nut |
| ISO9223: C5 |
| Packed per 50 pieces |

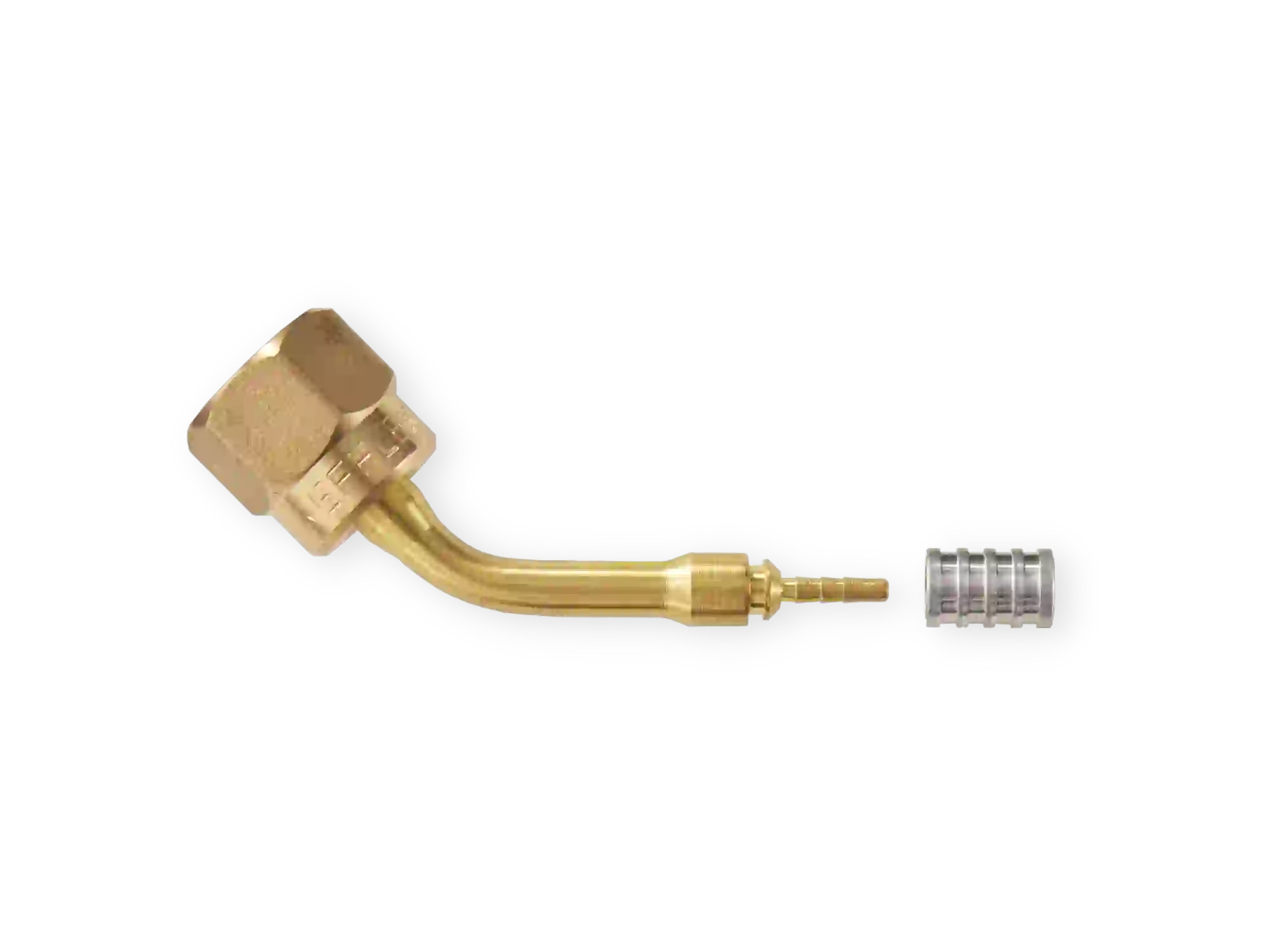

Article 202645
| 202645: brass-alu 45° angle |
| 45° brass elbow fitting |
| Aluminium crimping sleeve |
| 7/16″ UNF hot-forged brass nut |
| ISO9223: C3 |
| Packed per 50 pieces |

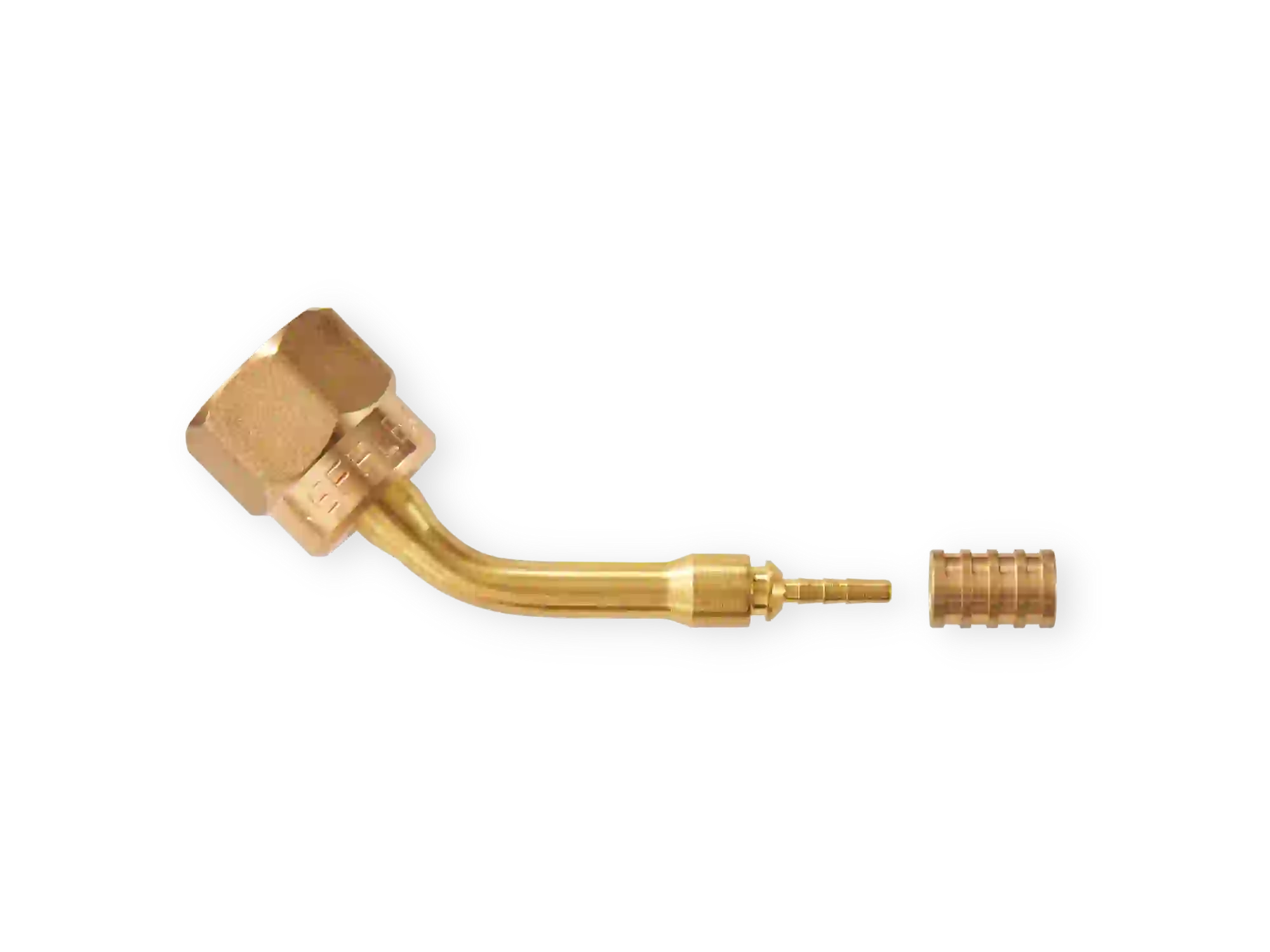

Article 203645
| 203645: full brass 45° angle |
| 45° brass elbow fitting |
| Brass crimping sleeve |
| 7/16″ UNF hot-forged brass nut |
| ISO9223: C5 |
| Packed per 50 pieces |

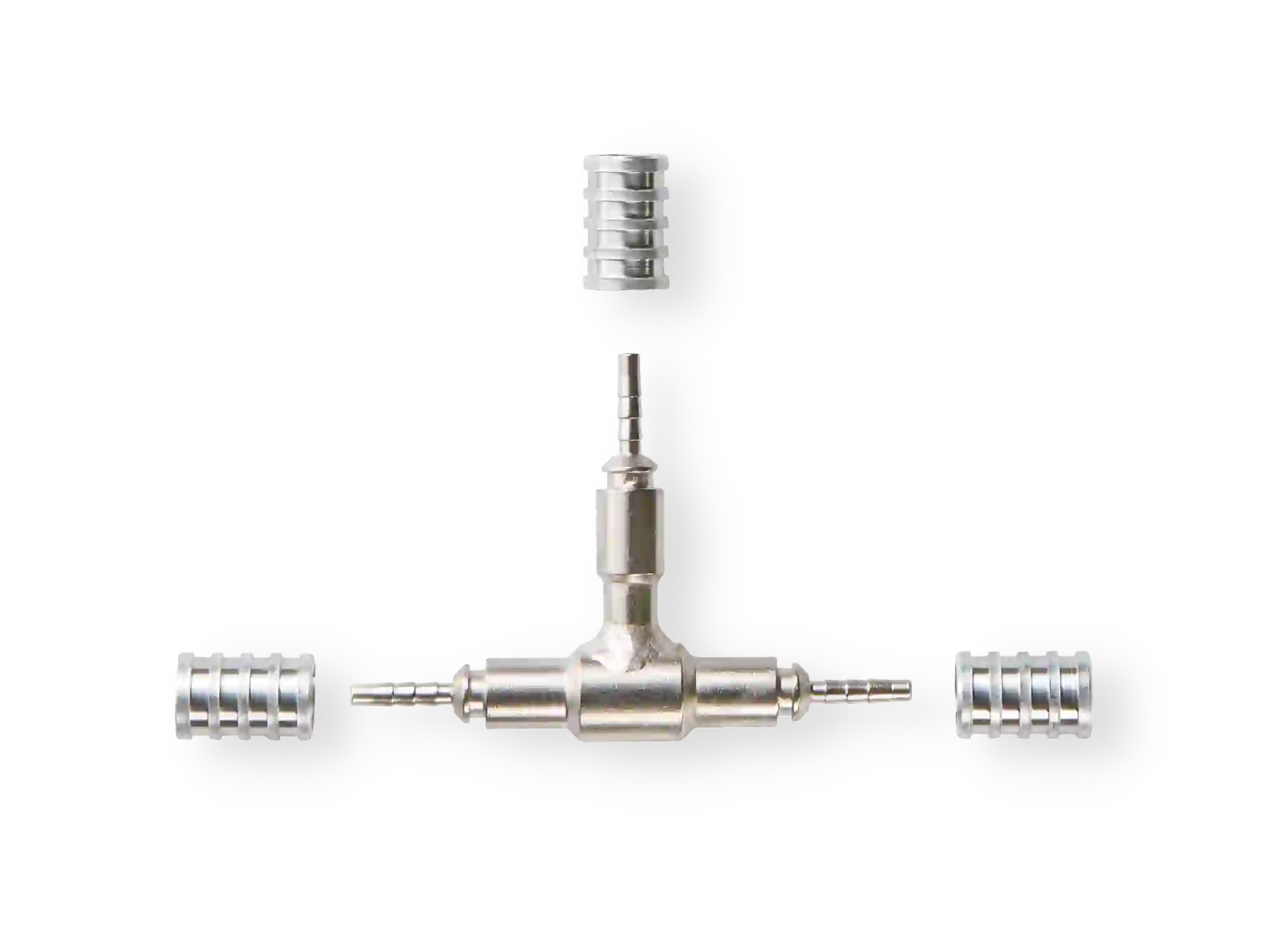

Article 201638
| 201638: T-piece Hose-Hose-Hose |
| Chromed brass Tee with 3 hose connections |
| Aluminium crimping sleeves (3x) |
| ISO9223: C5 |
| Packed per 25 pieces |

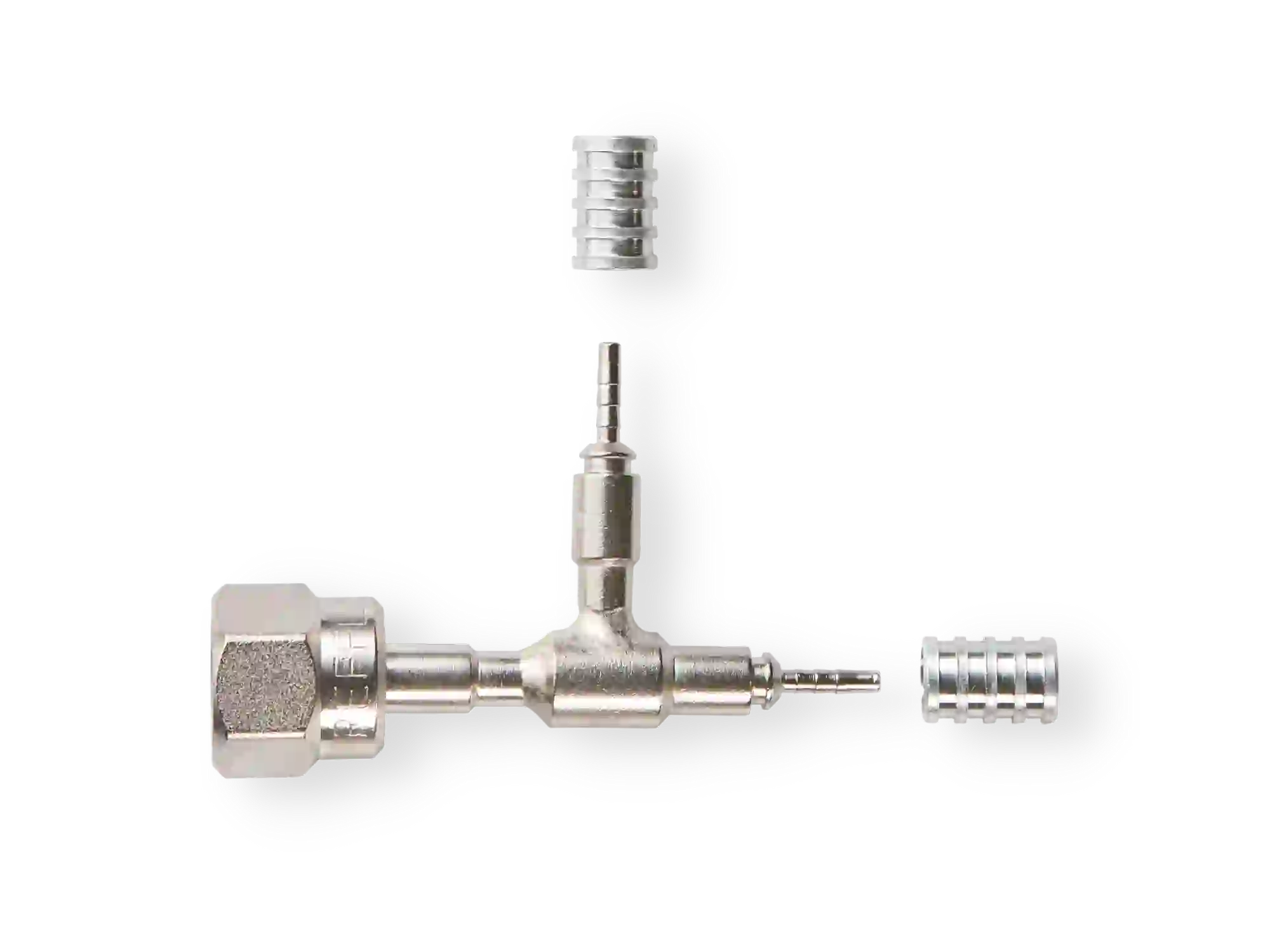

Article 201644
| 201644: T-piece Hose-Hose-Flare |
| Chromed brass Tee with 2 hose connections |
| Aluminium crimping sleeves (2x) |
| 7/16" hot-forged brass nut on the side |
| ISO9223: C5 |
| Packed per 25 pieces |

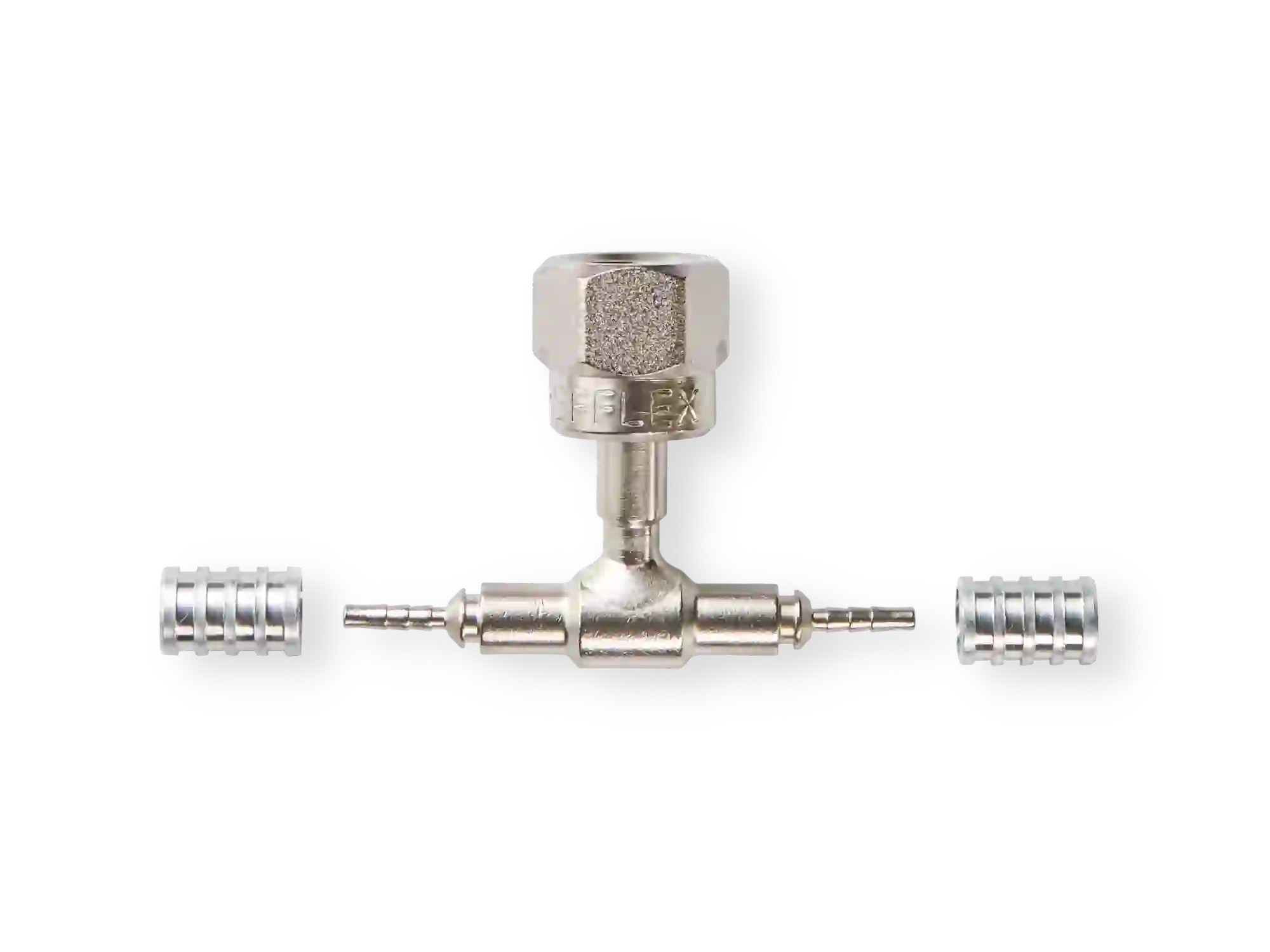

Article 201641
| 201641: T-piece Hose-Flare-Hose |
| Chromed brass Tee with 2 hose connections |
| Aluminium crimping sleeves (2x) |
| ISO9223: C5 |
| 7/16″ UNF hot-forged brass nut in the middle |
| Packed per 25 pieces |
Article 202631
| 202631: ODS copper pipe |
| Copper pipe solder |
| Aluminum crimping sleeve |
| ODS L=100mm |
| Packed per 25 pieces |

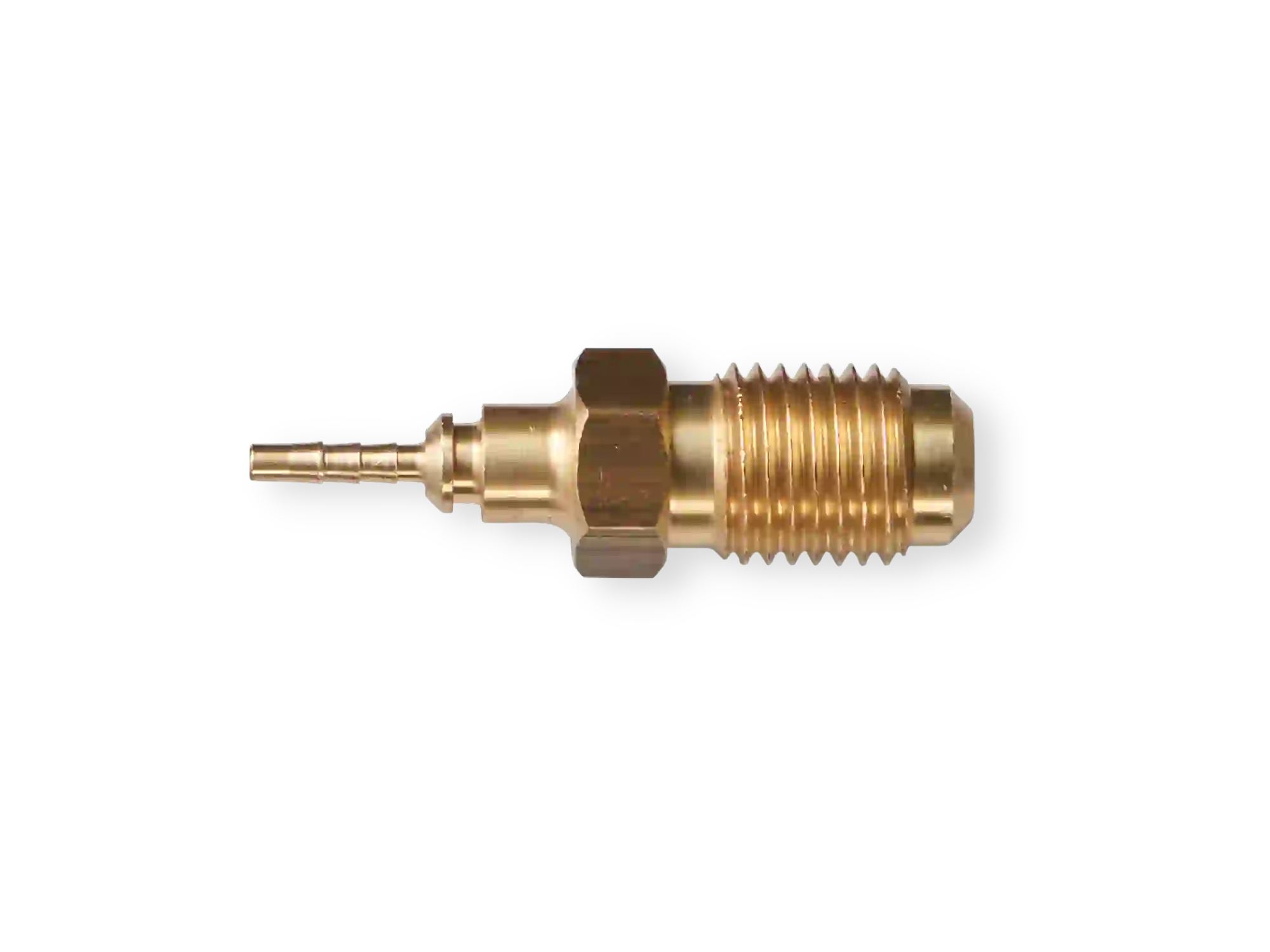

Article 203053
| 203053: DN-2.0 UNF connection |
| hose and 7/16"UNF connection |
| Aluminium crimping sleeve |
| Packed per 10 pieces |

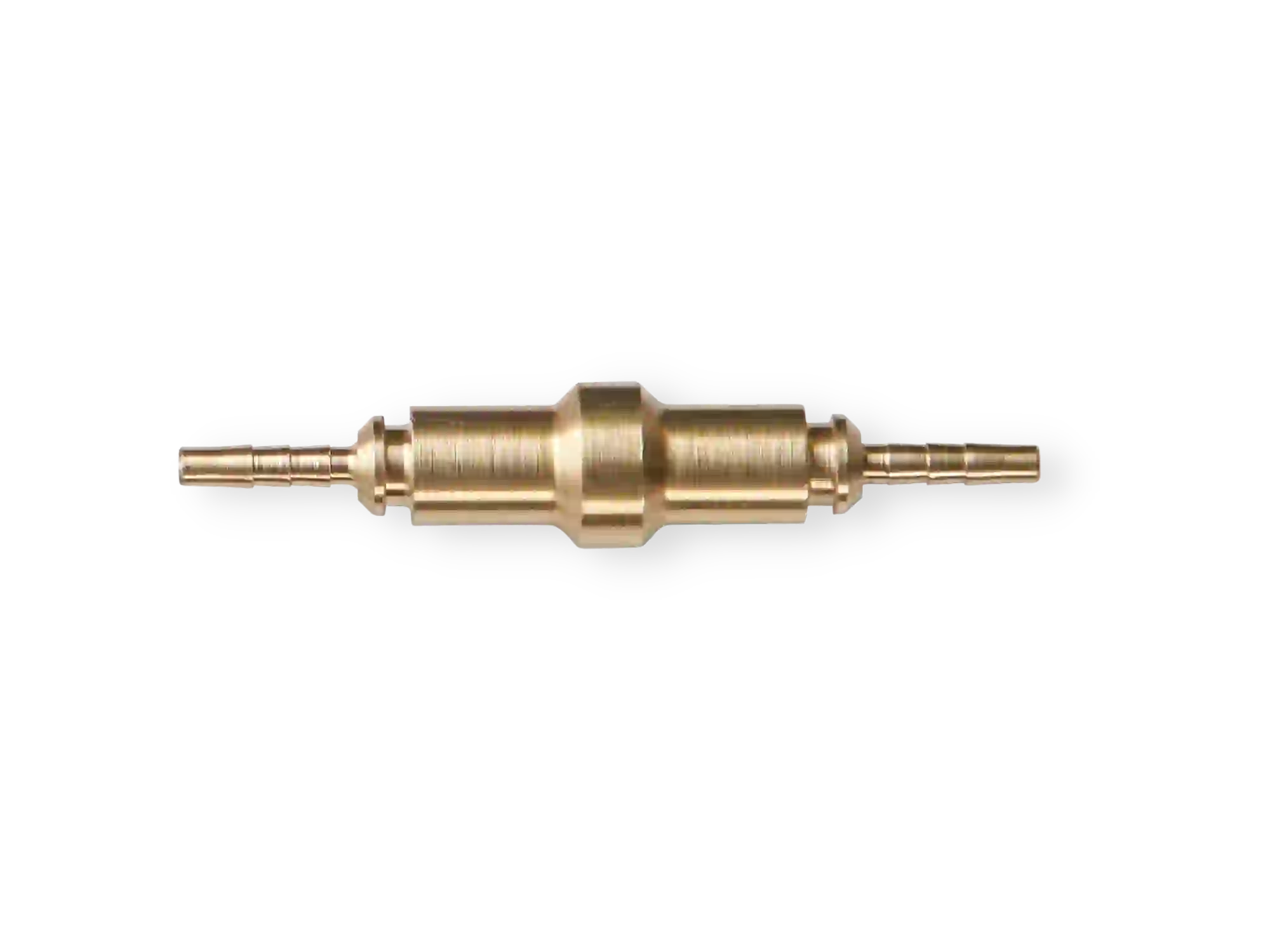

Article 202539
| 202539: DN-2.0 connector nipple |
| DN-2.0 connector nipple |
| Aluminium crimping sleeves (2x) |
| Packed per 10 pieces |
DN-2.0 crimp fittings spare parts
| Article number | description | Qty |
| 202614 | Schrader (access-) valve depressor for 1/4" fittings | 100 |
| 200126 | Copper gasket 1/4" (B2-4) | 100 |
| 201610 | Spare aluminium crimping sleeve | 100 |
| 203610 | Spare brass crimping sleeve | 100 |
| 101939 | Spare brass nut 1/4" flare (7/16" UNF) | 100 |
ISO9223 compliant
Our fittings have been tested and confirmed compliant with ISO9223 norm. ISO9223:2012 establishes a classification system for the corrosivity of atmospheric environments.
Our fittings have been rigorously tested by M2Lab, the Netherlands. Please find the result certificates herewith.
